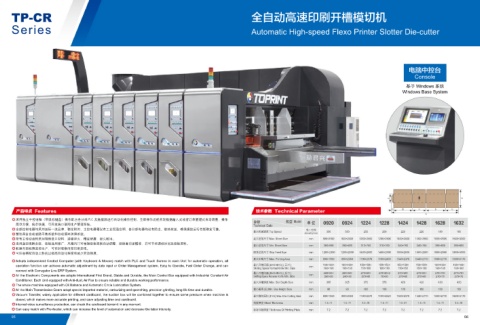

TP-CR 全自動高速印刷開槽模切機

Series Automatic High-speed Flexo Printer Slotter Die-cutter

電腦中控臺
Console

基于 Windows 系統
Windows Base System

E F

產品特點 Features 技術參數 Technical Parameter D B C B C
A
采用獨立中控電腦（帶鼠標鍵盤）操作配合各分部 PLC 及觸摸屏進行自動化操作控制，全部操作功能實現數據輸入式或者訂單管理式自動調整，操作
參數 機型 Model 單 位 0920 0924 1224 1228 1424 1428 1628 1632
簡單方便，換單快捷，可開放端口聯網生產管理系統。 Technical Date
全部控制電器均采用國際一流品牌，穩定耐用，主控電器箱設有工業恒溫空調，各分部電器均設有防塵、散熱裝置，確保操控運行性能穩定可靠。 張/分鐘
最大機械速度 Top Speed 350 350 250 250 220 220 180 180
整機具備自動油路平衡系統和自動循環潤滑系統。 sheets/min
所有主傳動齒輪采用特殊進口材料，滲碳淬火，精度研磨，經久耐用。 最大送紙尺寸 Max. Sheet Size mm 900×2100 900×2500 1200×2500 1200×2900 1400×2500 1400×2900 1600×2900 1600×3300
采用真空吸附走紙，紙板適用度廣，風箱風門可根據紙板規格自動調整，紙板套印更精準，并可節省調機時間及紙板原料。
最小送紙尺寸 Min. Sheet Size mm 280×690 280×690 310×760 310×760 340×760 340×760 390×800 390×800
機器內部視頻監控生產，可實時觀察內部印刷走紙。
可任意搭配自動上料機以提高自動化程度和減少勞動強度。 隔張送紙尺寸 Skip Feed Size mm 1200×2100 1200×2500 1400×2500 1400×2900 1600×2500 1600×2900 1800×2900 1800×3300
最大印刷尺寸 Max. Printing Area mm 890×1950 890×2350 1190×2370 1190×2800 1340×2370 1340×2770 1590×2770 1590×3170
Adopts independent Central Computer (with Keyboard & Mouse) match with PLC and Touch Screen in each Unit for automatic operation, all
operation function can achieve automatic adjustment by data input or Order Management system, Easy to Operate, Fast Order Change, and can 最小開槽間隔 (B×C×B×C) ( 正刀 ) mm 160×160× 160×160× 150×150× 150×150× 150×150× 150×150× 160×160× 160×160×
connect with Corrugator Line ERP System. Slotting Space Normal Knife Min. Size 160×160 160×160 150×150 150×150 150×150 150×150 160×160 160×160
All the Electronic Components are adopts International First Brand, Stable and Durable, the Main Control Box equipped with Industrial Constant Air 最小開槽間隔 (B×C×B×C) ( 反刀 ) mm 260×50× 260×50× 270×60× 270×60×2 270×60× 270×60× 270×70× 270×70×
Slotting Space Reverse Knife Min. Size
70×60
270×60
270×70
270×60
270×70
270×60
260×50
260×50
Conditioner, Each Unit equipped with Anti-dust, Air Fan to ensure reliable and durable working performance. 最大開槽深度 Max. Slot Depth Size mm 305 305 370 370 420 420 420 420
The whole machine equipped with Oil Balance and Automatic Circle Lubrication System.
All the Main Transmission Gears adopt special imported material, carburizing and quenching, precision grinding, long life time and durable. 最小箱高 (E) Min. Box Height Size mm 90 90 100 100 100 100 100 100
Vacuum Transfer, widely applicable for different cardboard, the suction box will be combined together to ensure same pressure when machine is 最大模切面積 (F×A) Max. Die-Cutting Size mm 890×1950 890×2350 1190×2370 1190×2820 1340×2370 1340×2770 1600×2770 1600×3170
closed, which makes more accurate printing, and save adjusting time and cardboard.
Internal video surveillance production, can check the cardboard transmit in any moment. 紙板厚度 Sheet Thickness mm 1.5 -11 1.5 -11 1.5 -11 1.5 -11 1.5 -11 1.5 -11 1.5 -11 1.5 -11
Can easy match with Pre-feeder, which can increase the level of automation and decrease the labor intensity. 標準印版厚度 Thickness Of Printing Plate mm 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2
